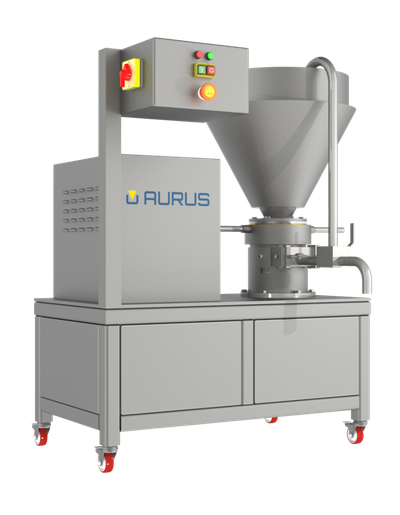

AURUS Colloid Mill

A processing machine known world over for its proven track record of homogenizing, emulsifying, mixing and comminuting of a variety of raw materials to highly viscous end products.

With an impressive strength in design, our mills have a reputation of being built like a tank, but with much better finish. It can be used for peanut butter making, chemical mixing and many other purposes.

The AURUS Colloid Mill is available in both Vertical and Horizontal form-factors with power options of 3 and 5 Horsepower respectively. Please contact us if your requirement exceeds that.

Variants


Primary Features

  • Precise control via an adjustable gap between rotor and stator
  • 3-way valve with re-circulating pipe for maximum processing efficiency
  • Effortless output via separate discharge spout for highly viscous products
  • Ultimate value on investment with multiple variant options
  • On/Off switch via DOL starter
  • Easy to dismantle and clean

  • Optional Features

  • Standard hopper (25 Ltrs) can be modified to accommodate up to 50 Ltrs
  • ATEX-compliant Flame-proof electricals
  • Wash-in-Place, Clean-in-Place feature is available

  • Safety Features

  • Overload pressure release mechanism
  • Certified cGMP, CE, UL compliant
  • Four castor wheels with Brakes

  • Technical Specifications

    MOC

    SS316L (contact)

    SS304 (non-contact)

    Seals & Gaskets

    Food Grade Silicone Rubber, PTFE Teflon, Lip Seals and Mechanical Seals

    Particle Size Reduction

    5 to 10 Microns

    Design Capacity

    Upto 1200 Kgs/Hr, depending upon Particle Size, Material Characteristics, etc.

    Main Motor

    3HP / 5HP

    2800RPM, 415V AC, 50Hz

    Hopper Capacity

    25 Ltr

    Motor Coupling

    Belt Drive

    Valve

    3-way Valve for drainage & recirculation


    Models

    Model Name Drive Method
    HCM-30

    Belt-Driven

    HCM-50

    Belt-Driven

    VCM-30

    Direct-Coupling

    VCM-50

    Direct-Coupling


    Industries

    This machine is commonly used in the following range of industries. Its flexible variant options yet powerful production capabilities makes it extremely useful in a variety of processing activities.

    Chemicals / Cosmetics / Food / Pharmaceuticals

  • Ointments
  • Creams
  • Peanut Butter
  • Mayonnaise
  • Spice Pastes
  • Paints
  • Pigments
  • Lotions
  • Baby Food
  • Detergents
  • Extracts
  • Emulsions
  • Colour Solutions
  • Pastes
  • Drinks
  • Milk Products
  • Salad Dressing
  • Ketchup
  • Soups
  • Cream Cheese
  • Colourings
  • Plastics
  • PVC Coatings
  • Paper Coatings
  • Latex Emulsions
  • Shoe Polishes
  • Textile Coating
  • Car Shampoos
  • Sealants
  • Bath Additives
  • Toothpastes
  • Soaps
  • Face Milk
  • Makeup
  • Lipstick Bases
  • Shaving Creams
  • Shampoos
