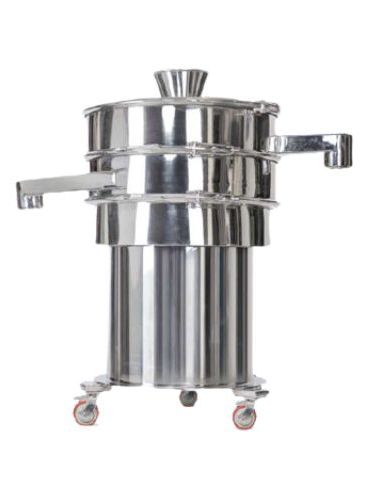

AURUS Vibro Sifter

The Vibro Sifter, manufactured by AURUS, is a highly efficient and versatile pharmaceutical machine used for the separation and grading of solid particles from granules or powders. It is an essential equipment in the pharmaceutical industry, known for its exceptional performance, precise sieving, and superior product quality.

The Vibro Sifter operates on the principle of gyratory vibrations, allowing for efficient particle separation. The material to be sieved is fed into the sifter through a hopper, and as the machine vibrates, the particles move across the screen mesh. The vibrating motion causes the smaller particles to pass through the screen, while the larger particles are retained. This sieving process ensures the desired particle size distribution and removes any unwanted contaminants.

Please contact us if your requirement exceeds that.


Primary Features

  • Dust-free design
  • Energy efficient.
  • High performance, Low noise.
  • Double and Triple Decker arrangement
  • can be provided as per requirement.
  • cGMP Model with SS 316L contact parts and SS 304 non-contact parts
  • Vibratory Motion Intensity can be adjusted.
  • Powder charging through a dust-free SS 316L hood.
  • Quick opening SS 316L clamps make disassembly, cleaning, and reassembling a breeze.
  • Mounted on sturdy Castor Wheels with brakes, this portable unit is easily transportable.
  • Rugged springs isolate the vibrating assembly.
  • Silicone moulded mesh.

  • Optional Features

  • Standard hopper (25 Ltrs) can be modified to accommodate up to 50 Ltrs
  • ATEX-compliant Flame-proof electricals
  • Wash-in-Place, Clean-in-Place feature is available

  • Safety Features

  • Overload pressure release mechanism
  • Certified cGMP, CE, UL compliant
  • Four castor wheels with Brakes

  • Technical Specifications

    Models

    Model
    Name

    KVS-12

    KVS-20

    KVS-30

    KVS-36

    KVS-48

    Motor

    0.25 HP

    0.50 HP

    0.50 HP

    1.00 HP

    1.50 HP

    Capacity

    10 to 60 Kgs

    20 to 150 Kgs

    30 to 250 Kgs

    50 to 350 Kgs

    60 to 500 Kgs
