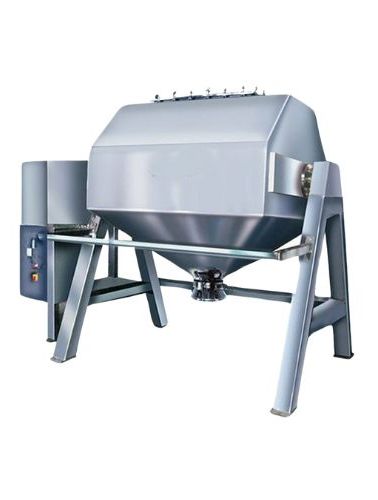

AURUS Octagonal Blender Exporter

The Octagonal Blender, offered by AURUS, is a highly efficient and versatile pharmaceutical machine designed specifically for production managers, quality heads, and machine operators in the pharmaceutical industry. It stands as a top choice for achieving uniform blending of dry powders and granules.


Primary Features

  • Enclosed rigid drive with reduction gear box and motor.
  • "A" type rigid structure of the machine with two sides resting of product container.
  • Product container having discharge with butterfly valve and man hole.
  • Charging hole with hinged lid with seal for charging and cleaning.
  • Fixed baffles provided for lumps breaking.
  • Loading & Unloading by Product container with Jacking trolley.

  • Optional Features

  • Please contact us for more

  • Safety Features

  • Certified cGMP, CE, UL compliant
  • Charging Port with an Air-tight cover & clamp
  • Mechanical guard rails & Overload-Protection relays
  • Positively-interlocked safety barrier with switch
  • Discharge Port with a Butterfly-valve
  • FDA-compliant food-grade Silicon & PTFE seals

  • Technical Specifications

    MOC

    SS316L (contact)

    SS304 (non-contact)

    Finish

    240 grit Mirror (interior)

    180 grit Matt (exterior)

    Motor

    1440RPM, 415V, 3-Phase AC, 50Hz

    Hindustan/Crompton-make

    Non-FLP Foot-mounted, Geared-type

    Blender RPM

    8-17RPM adjustable with VFD

    Safety

    Mechanical guard rails

    Overload-Protection relays

    Models

    Model Name Motor Charging Port Discharging Port Gross Capacity Working Capacity (@0.50 Bulk Density)
    DCB-LAB

    1HP

    250mm Dia.

    4” Dia.

    15Ltr

    10Ltr

    3-5kg

    DCB-75

    2HP

    250mm Dia.

    8” Dia.

    75Ltr

    60Ltr

    25-30kg

    DCB-150

    3HP

    250mm Dia.

    8” Dia.

    150Ltr

    120Ltr

    55-60kg


    Industries

    This machine is commonly used in the following range of industries. Its flexible variant options yet powerful production capabilities makes it extremely useful in a variety of processing activities.

    Chemicals / Food / Nutraceuticals / Pharmaceuticals

  • Flours
  • Lactose
  • Sauces
  • Seeds
  • Detergents
  • Explosives
  • Protein Supplements
  • Granular Blends
  • Whole Foods
  • Syrups
  • Juices
  • Ceramics
  • Spices
  • Active Pharmaceutical Ingredients
  • Starch
  • Ground Coffee
  • Baby Food
  • Glass
  • Rubber Compounds
  • Plastic Pellets
  • Powders
  • Cellulose
  • Cocoa Powder
  • Candy
  • Dry Powders
  • Soap Flakes
  • Multi-Vitamins
