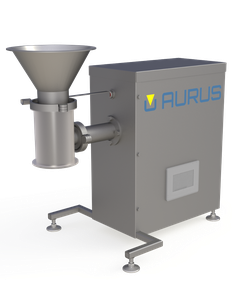

AURUS Cone Mill

A milling machine known world over for its proven track record at delumping of powders & granules (deagglomeration).

It is an essential tool in a range of processes such as fine-grinding, uniform size-reduction, dispersion, sieving, mixing as well as dry & wet milling.

The AURUS Cone Mill is available primarily in three variants for scalable results. The Laboratory model consists a 0.75HP motor, while the higher production models are available in options of 2HP and 5HP. Please contact us if your requirement exceeds that.


Primary Features

  • Impressive throughput with a larger capacity than the other conventional cone mills
  • Tight particle size distribution through a gentle grinding action and quick discharge
  • High-performance design that uses centrifugal force for maximum processing efficiency
  • Effortless ownership experience due to minimal noise, heat and dust.
  • Ultimate value on investment with multiple variant options based on requirement

  • Optional Features

  • Additional Screens and Impellers
  • Touch-screen control system
  • ATEX-complaint Flame-proof electricals
  • Wash-in-Place, Clean-in-Place is available

  • Safety Features

  • Certified cGMP, CE, UL compliant
  • Food-grade silicone rubber, PTFE teflon seals

  • Technical Specifications

    MOC

    SS316L (contact)

    SS304 (non-contact)

    Finish

    Mirror (interior)

    Matt (exterior)

    Motor

    0.75/2/5HP, 2800RPM, 415V AC, 50Hz

    Models

    Model Name Motor Capacity
    UDC-LAB

    0.75HP

    ≤ 50kg/hr

    UDC-20

    2HP

    ≤ 400kg/hr

    UDC-50

    5HP

    ≤ 800kg/hr


    Industries

    This machine is commonly used in the following range of industries. Its flexible variant options yet powerful production capabilities makes it extremely useful in a variety of processing activities.

    Chemicals / Cosmetics / Food / Pharmaceuticals

  • Tablet Reclamation
  • Dried Fruits
  • Raisins
  • Cranberries
  • Breadcrumbs
  • Dry Detergent Powders
  • Pearl-based Blush
  • Face Powder
  • Granules
