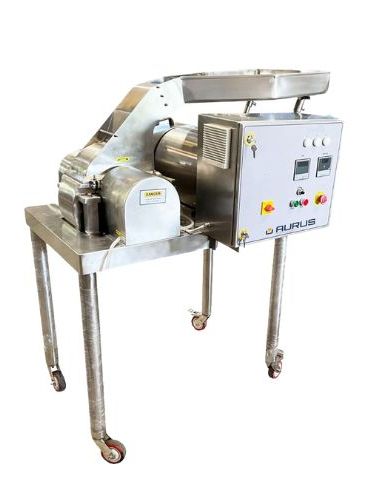

AURUS Comminuting Mill

The Comminuting Mill, manufactured by AURUS, is a powerful pharmaceutical machine designed for size reduction and homogenization of a wide range of materials. It is a versatile equipment that finds applications in the pharmaceutical, chemical, and food processing industries.

The Comminuting Mill operates on the principle of impact and attrition. The material is fed into the mill through a hopper and comes into contact with a series of sharp blades or knives rotating at high speeds. The material is rapidly crushed, pulverized, and reduced in size as it passes through the milling chamber. The adjustable clearance between the blades and the screen enables precise control over the final particle size, ensuring consistent and uniform results.

Please contact us if your requirement exceeds that.


Primary Features

  • Precise control via an adjustable gap between rotor and stator
  • 3-way valve with re-circulating pipe for maximum processing efficiency
  • Effortless output via separate discharge spout for highly viscous products
  • Ultimate value on investment with multiple variant options
  • On/Off switch via DOL starter
  • Easy to dismantle and clean

  • Optional Features

  • Standard hopper (25 Ltrs) can be modified to accommodate up to 50 Ltrs
  • ATEX-compliant Flame-proof electricals
  • Wash-in-Place, Clean-in-Place feature is available

  • Safety Features

  • Overload pressure release mechanism
  • Certified cGMP, CE, UL compliant
  • Four castor wheels with Brakes

  • Technical Specifications

    MOC

    SS316L (contact)

    SS304 (non-contact)

    Seals & Gaskets

    Food Grade Silicone Rubber, PTFE Teflon, Lip Seals and Mechanical Seals

    Particle Size Reduction

    5 to 10 Microns

    Design Capacity

    Upto 1200 Kgs/Hr, depending upon Particle Size, Material Characteristics, etc.

    Main Motor

    3HP / 5HP

    2800RPM, 415V AC, 50Hz

    Hopper Capacity

    25 Ltr

    Motor Coupling

    Belt Drive

    Valve

    3-way Valve for drainage & recirculation


    Models

    Model Name Drive Method
    HCM-30

    Belt-Driven

    HCM-50

    Belt-Driven

    VCM-30

    Direct-Coupling

    VCM-50

    Direct-Coupling


    Industries

    This machine is commonly used in the following range of industries. Its flexible variant options yet powerful production capabilities makes it extremely useful in a variety of processing activities.

    Chemicals / Cosmetics / Food / Pharmaceuticals

  • Ointments
  • Creams
  • Peanut Butter
  • Mayonnaise
  • Spice Pastes
  • Paints
  • Pigments
  • Lotions
  • Baby Food
  • Detergents
  • Extracts
  • Emulsions
  • Colour Solutions
  • Pastes
  • Drinks
  • Milk Products
  • Salad Dressing
  • Ketchup
  • Soups
  • Cream Cheese
  • Colourings
  • Plastics
  • PVC Coatings
  • Paper Coatings
  • Latex Emulsions
  • Shoe Polishes
  • Textile Coating
  • Car Shampoos
  • Sealants
  • Bath Additives
  • Toothpastes
  • Soaps
  • Face Milk
  • Makeup
  • Lipstick Bases
  • Shaving Creams
  • Shampoos
